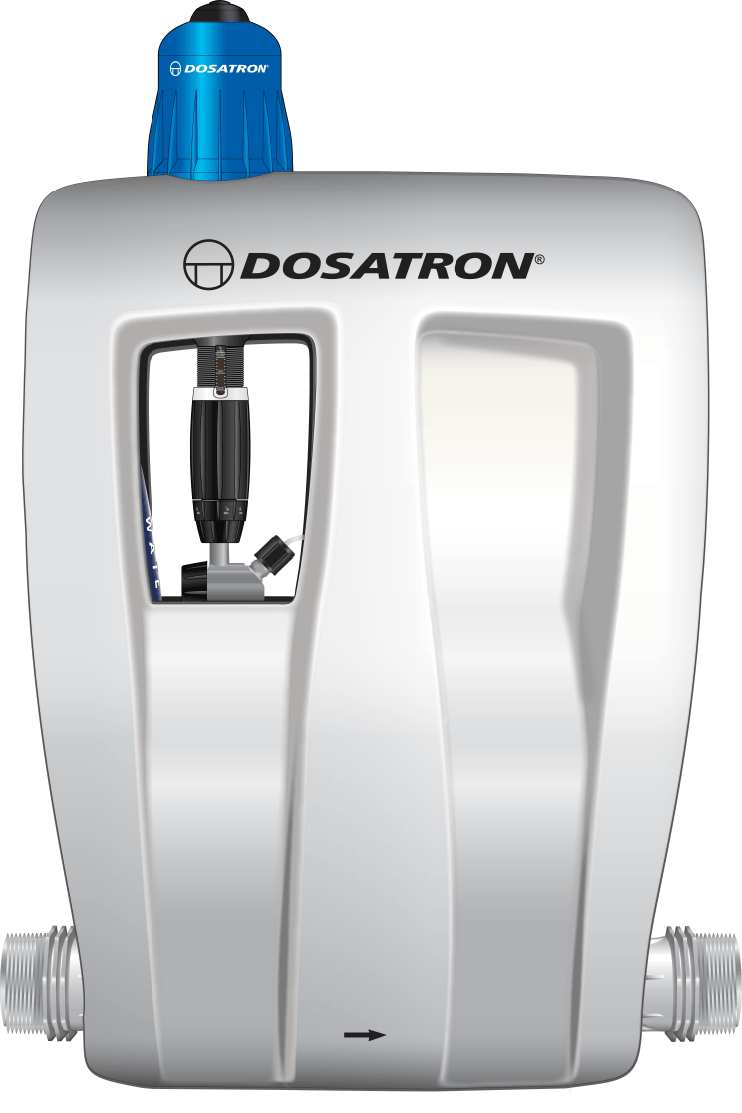

Dosatron D132, Water Powered Dosing Technology

Call for price

Introducing the D132 -- PLEASE CALL FOR PRICING

Dosatron’s NEW High Flow Series Fertilizer and Chemical Injectors

The latest addition to the Dosatron line of fertilizer and chemical injectors is theNEW High Flow Series! These new models havethe high water ow capacity of 132 gallons per minute.

The fertigation model will inject soluble fertilizer, while the lowinjection rate model (1:30000) is for direct injection of water treatment chemicals.

The D132 is great for:

Fertilizers
Insecticides
Fungicides
Algicides
Acids
Wetting Agents

UNIT SPECIFICATIONS

• Disinfectants
•Compost Tea
•Hydroponics
• Chlorine Dioxide • Chlorine

MODEL	D132WL30000	D132WL5000	D132GL02	D132GL1
MAX. FLOW	132 GPM	132 GPM	132 GPM	132 GPM
MIN. FLOW	35 GPM	35 GPM	35 GPM	35 GPM
INJECTION PERCENTS	0.003% to 0.03%	0.02% to 0.2%	0.02% to 0.2%	0.1% to 1%
INJECTION RATIO	1:30,000 to 1:3,000	1:5,000 to 1:500	1:5,000 to 1:500	1:1,000 to 1:100
PRESSURE RANGE	7 - 87 PSI	7 - 87 PSI	7 - 87 PSI	7 - 87 PSI
CONNECTIONS	3” NPT	3” NPT	3” NPT	3” NPT

All units include: suction hose, weighted strainer, and quick start guide. MAXIMUM TEMPERATURE: 104 °F

D132 dimensions: 41 3/4” x 27 1/4” x 10 1/4”

To learn more about the NEW D132 or toorder, call800-523-8499orCHATwith us on our website atwww.dosatronusa.com.

Call for details, demos, and pricing.
